Bronze Gate Valves
As Per IS 778 Class I / Class II


Screwed End Valves                Flanged End Valves

Material Of  Construction :                                                              Working Pressure :
a) Body, Cap & Gate : Bronze confirming to IS 318 Gr.2.                  10.5 Kg/Cm2 Cold Non Shock.
b) Spindle : Extruded Brass bar confirming to IS 319.                        Testingpressure21Kg/Cm2hydraulic.
c) Gland & Gland Nut : Brass / Bronze

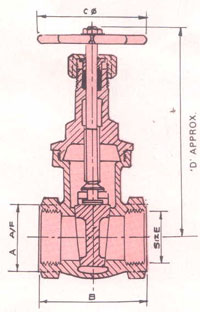

Screwed End Valves



SIZE
mm		 A A/F
mm		 B
mm		 C
mm		 D
mm
10 22 50 50 80
15 27 60 60 100
20 34 60 70 110
25 43 70 70 130
32 52 80 90 145
40 60 90 90 165
50 72 100 90 200
SIZE
mm		 A
mm		 B
mm		 C
mm		 D
mm
10 22 50 50 121
15 27 60 60 121
20 34 60 70 155
25 43 70 70 190
32 52 80 90 195
40 60 90 90 205
50 72 100 90 290

Flanged End Valves


Flanged end valves have Flanges
as per B. S. 10 Table D.		 Valves are ordinarily supplied with undrilled flanges.  However, valves with drilled flanges, can also be supplied if details are given while ordering


Gate Valve Non Rising Sindle

Gate Valve Rising Sindle
SIZE
mm		 A
mm		 B
mm		 C
mm		 D
mm		 T
mm
15 95 72 60 100 6
20 105 76 60 115 6
25 115 90 70 135 8.5
32 52 80 90 145
40 60 90 90 165
50 72 100 90 200
SIZE
mm		 A
mm		 B
mm		 C
mm		 D
mm		 T
mm
15 95 72 60 135 6
20 105 76 60 160 6
25 115 90 70 205 8.5
32 140 100 90 230 8.5
40 150 110 90 245 9
50 165 120 90 305 11
