Bronze Steam Valves
( Available with IBR III C )

Flanged End Valves

Screwed End Valves
Material Of Construction :
a) Body and Cap : Bronze confirming to IS 318 grade 2.
b) Spindle, Seat & Diaphragm : Non-magnetic stainless steel.
c) Diaphragm Nut & Gland : Brass bars confirming to IS 319.
 Working Pressure :
Steam pressure up to 17.5 Kg/Cm2.
& Temperature up to 2240 c or cold non shock  fluids up to 21 kg / Cm2
Testing Pressure : 35 kg / Cm2 hydraulic.

Screwed End Valves

Steam Stop Valves

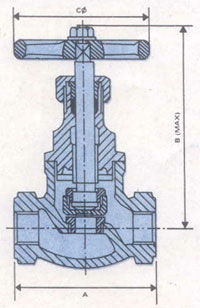

SIZE MM A B C
15 82 130 80
20 96 160 90
25 105 180 91
40 124 225 115
50 145 240 135
Steam Non Return Valves
SIZE MM A B
15 82 130
20 96 160
25 105 180
40 124 225
50 145 240

Flanged End Valves
Flanged end valves have Flanges as per B.S.10 Table F.Value of 4 table
Valves are ordinarily supplied with undrilled flanges. However, valves with drilled flanges, can also be supplied if details are given while ordering.

NOT AVAILABLE
STEAM STOP VALVES
SIZE
mm		 A
mm		 B
mm		 C
mm		 D
mm		 T
mm
15 92 95 133 80 8
20 105 101 155 90 8
25 117 120 178 90 9.50
40 140 140 225 115 11
50 165 165 240 135 11
STEAM NON RETURN VALVES
SIZE
mm		 A
mm		 B
mm		 T
mm
15 92 95 8
20 105 101 8
25 117 120 9.5
40 140 140 11
50 165 165 11



Click for additional photographs
